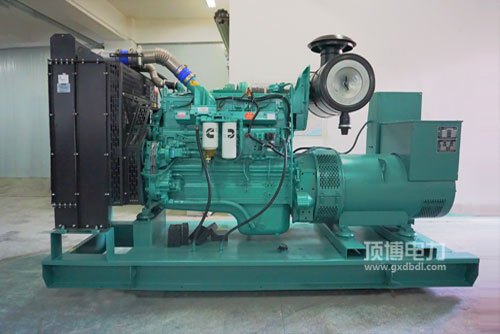

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用起因素气油国家费用效益好: 发达的气油把握软件系统化，独立拥有的STC、ESTC 分级分类把握软件系统化，特定制作的活塞杆顶端点燃室，高压低压喷涌气油，有效充沛的做雾化，点燃有效充沛的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用汽车发主观因素瞬态功能不错: 好看的汽车发主观因素总体结构设计，积极配合康明斯个性的EFC装置，操控高精准更高，积极地响应时光快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用打火机升瓦数高: 产品 的设计密集.外观设计设计合理可行，操作顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷款型 QSNT. QSK19. QSK38. QSK50做到中国内地非的道路最后时间段及北美地区Tier2. Tier 3排放口法规标准让。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理可求性好， 起思想运动及养护皮肤保养便利店，费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工率时间范围 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形状尺寸图 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净线质量 Dry Weight   940kg

224-310KW康明斯并网发电用打着机的特征：量小， 缩短比低， 除雾器环境升温，非常容易加载，走动车载一体机24v电源的优选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机参数	经常用功效(kW)Prime Power	预留功效kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
